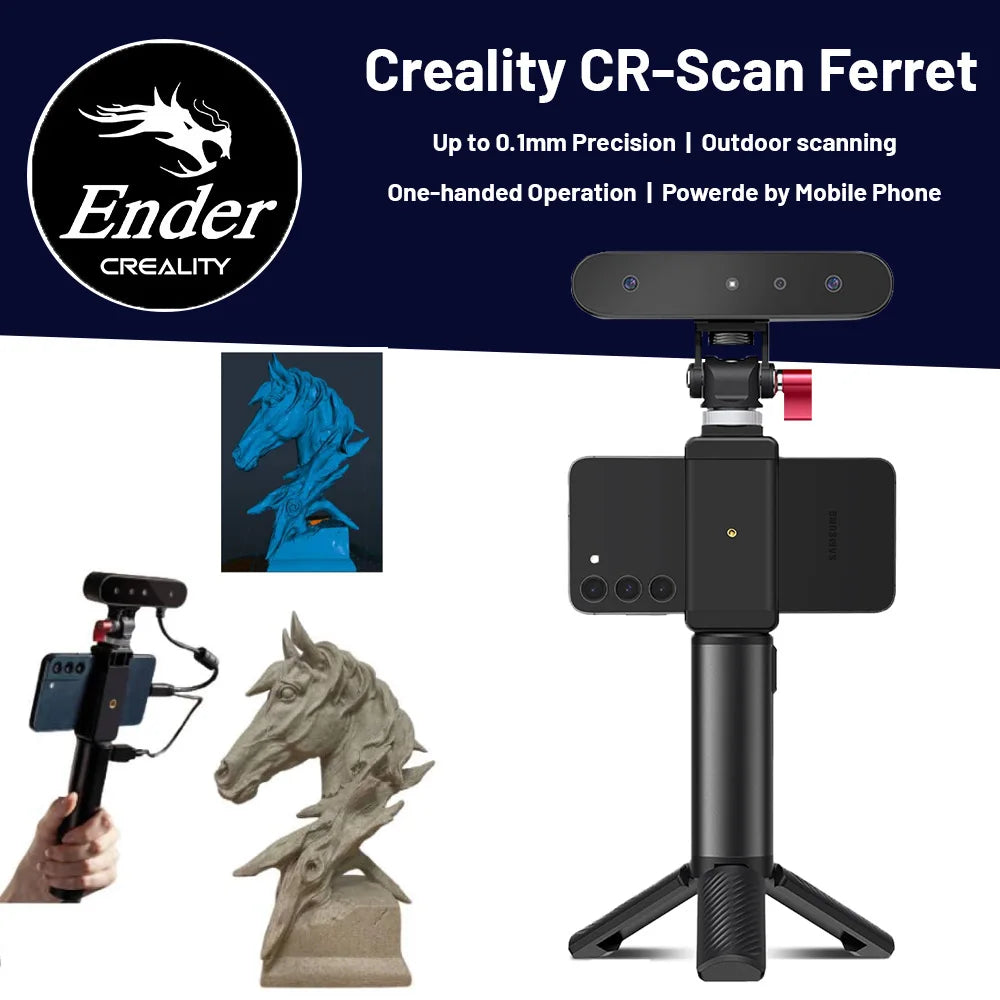

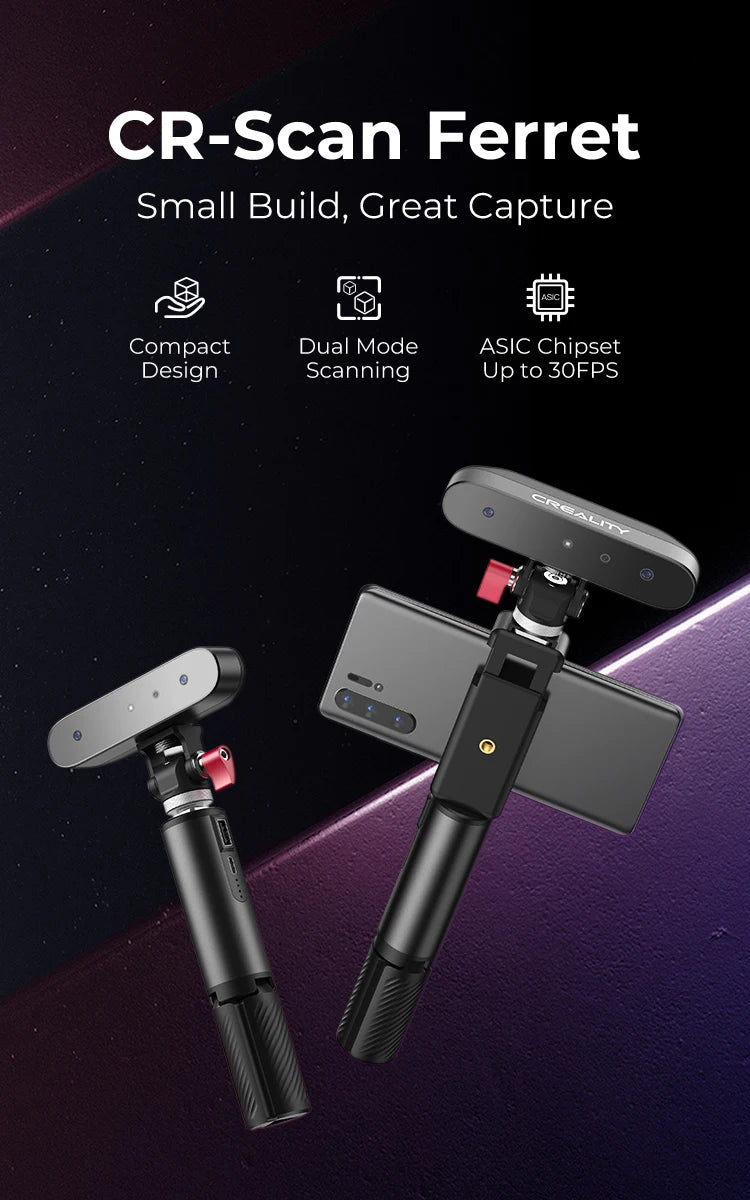

Creality CR-Scan Ferret 3D Scanner

Creality CR-Scan Ferret 3D Scanner

Portable 3D Scanning | 30 FPS | 0.1 mm Accuracy | Full-Color Capture

🔍 Product Highlights

• 🎯 High Accuracy: Achieve stunning precision up to 0.1 mm with 0.16 mm point distance resolution, perfect for reverse engineering, modeling, or 3D printing.

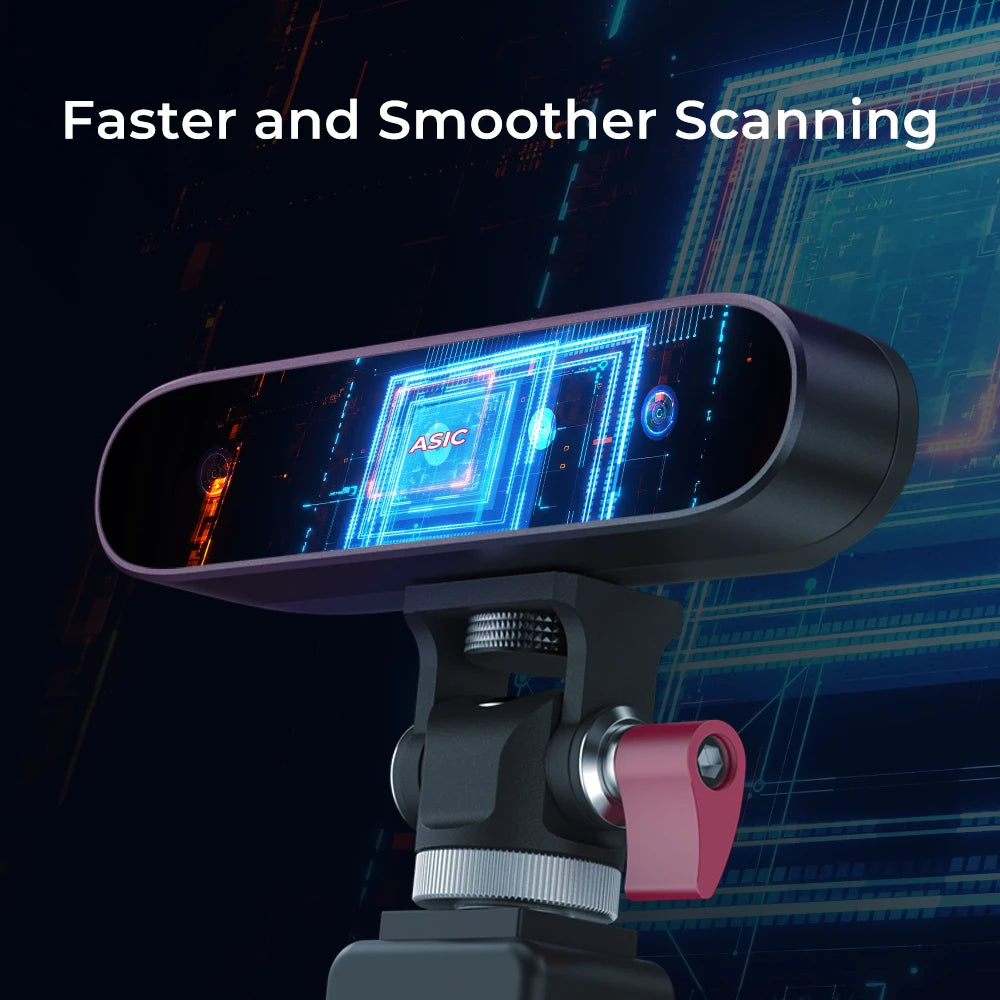

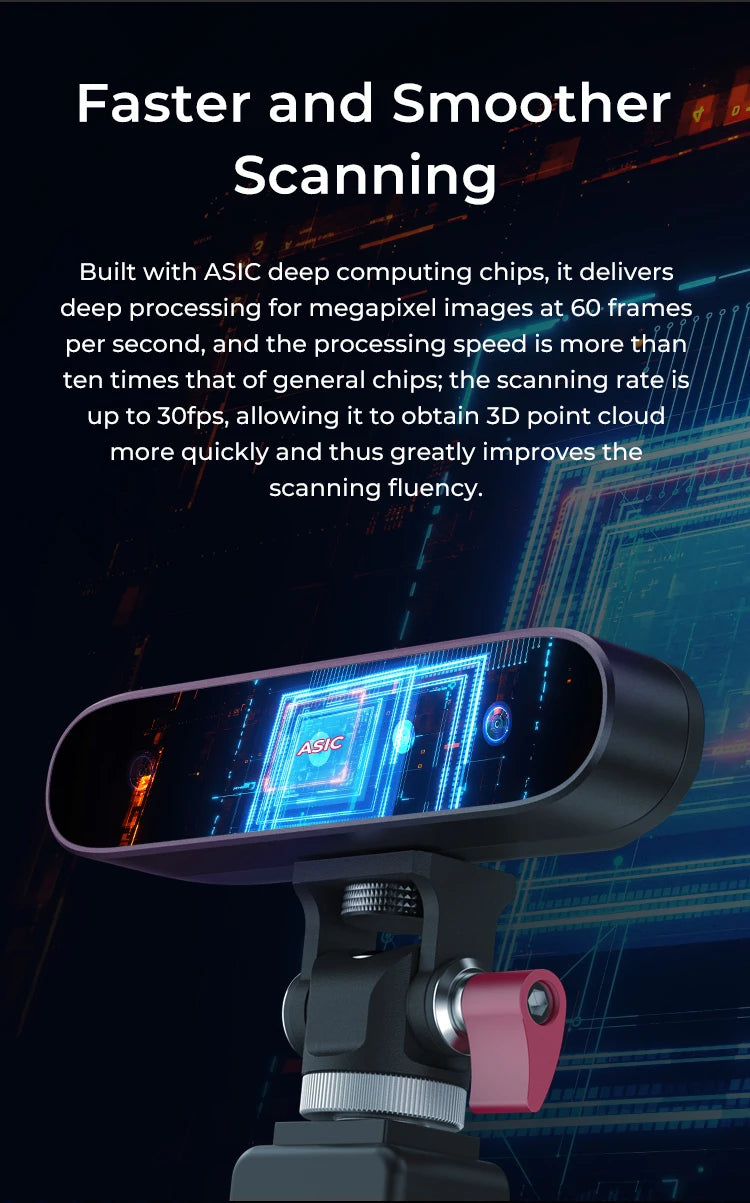

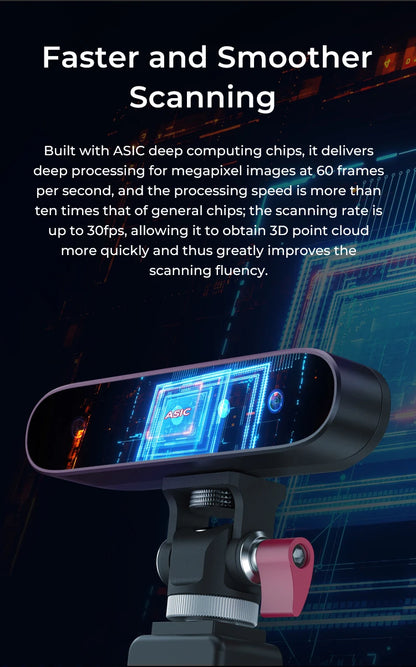

• ⚡ Ultra-Fast Scanning: Capture in real-time with up to 30 frames per second, resulting in smoother scanning, faster workflows, and less post-processing.

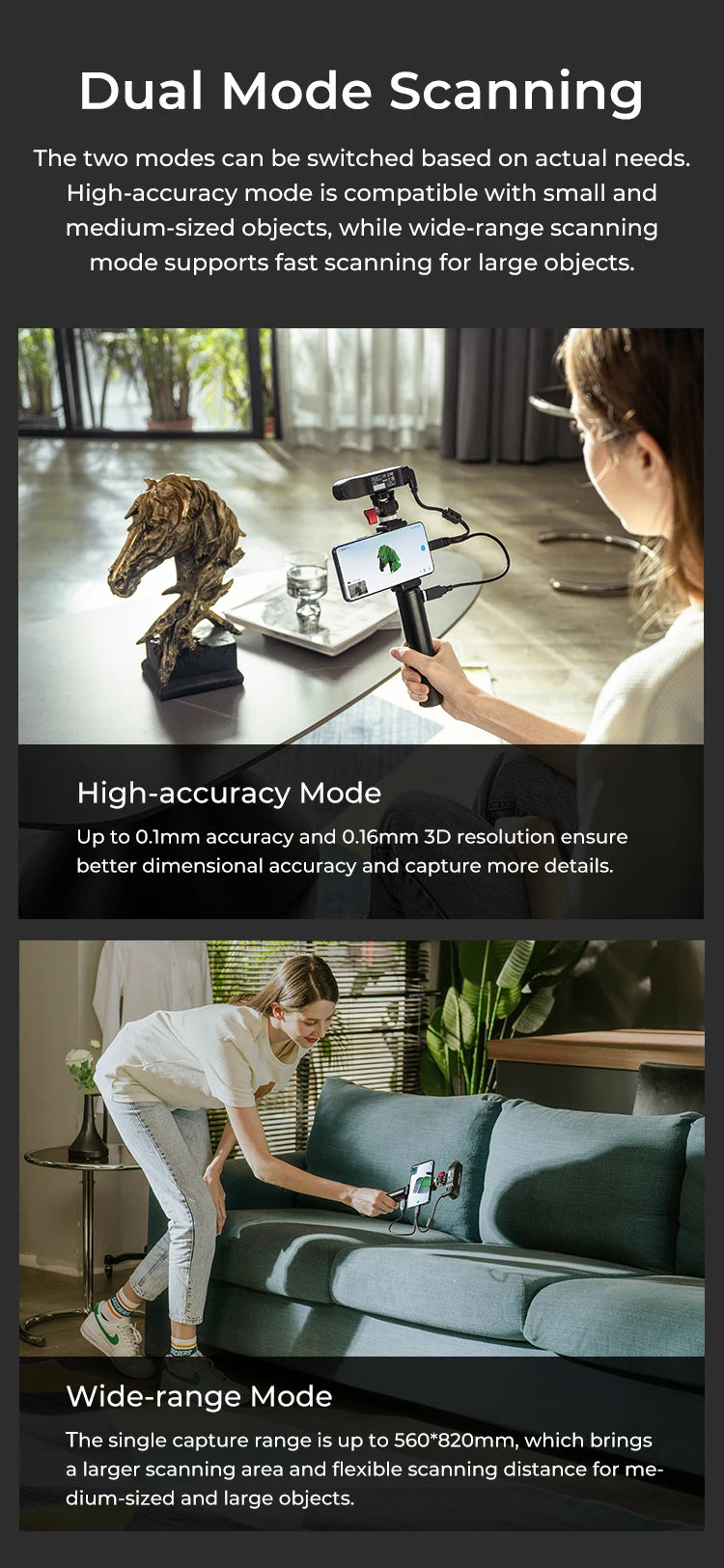

• 🧠 Dual Scanning Modes: Switch between Wide Range Scanning and High Precision Mode for versatile applications — from detailed miniatures to large-scale objects.

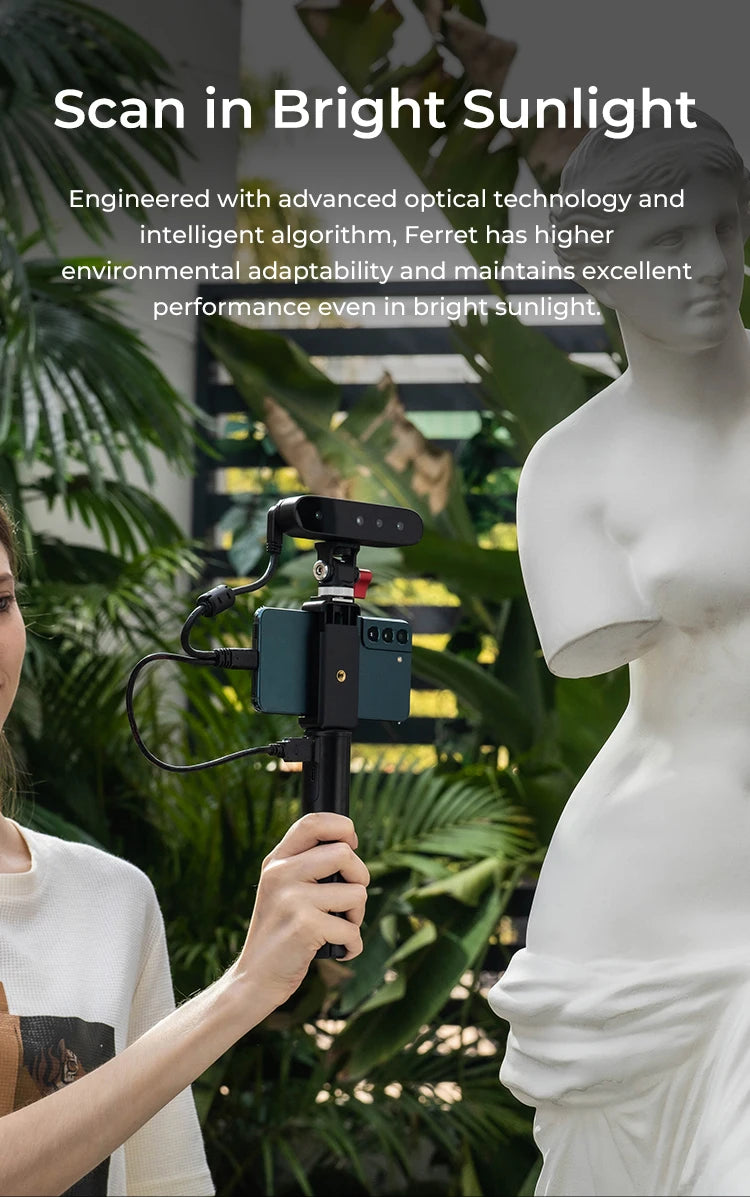

• 🌞 Outdoor Ready: Engineered with NIR light technology, it performs reliably even under direct sunlight.

• 🖌️ Full-Color Texture Scanning: Creates realistic and color-rich 3D models with support for texture capture.

• 🧳 Ultra Lightweight: Weighs just 105g, making it perfect for mobile scanning on the go.

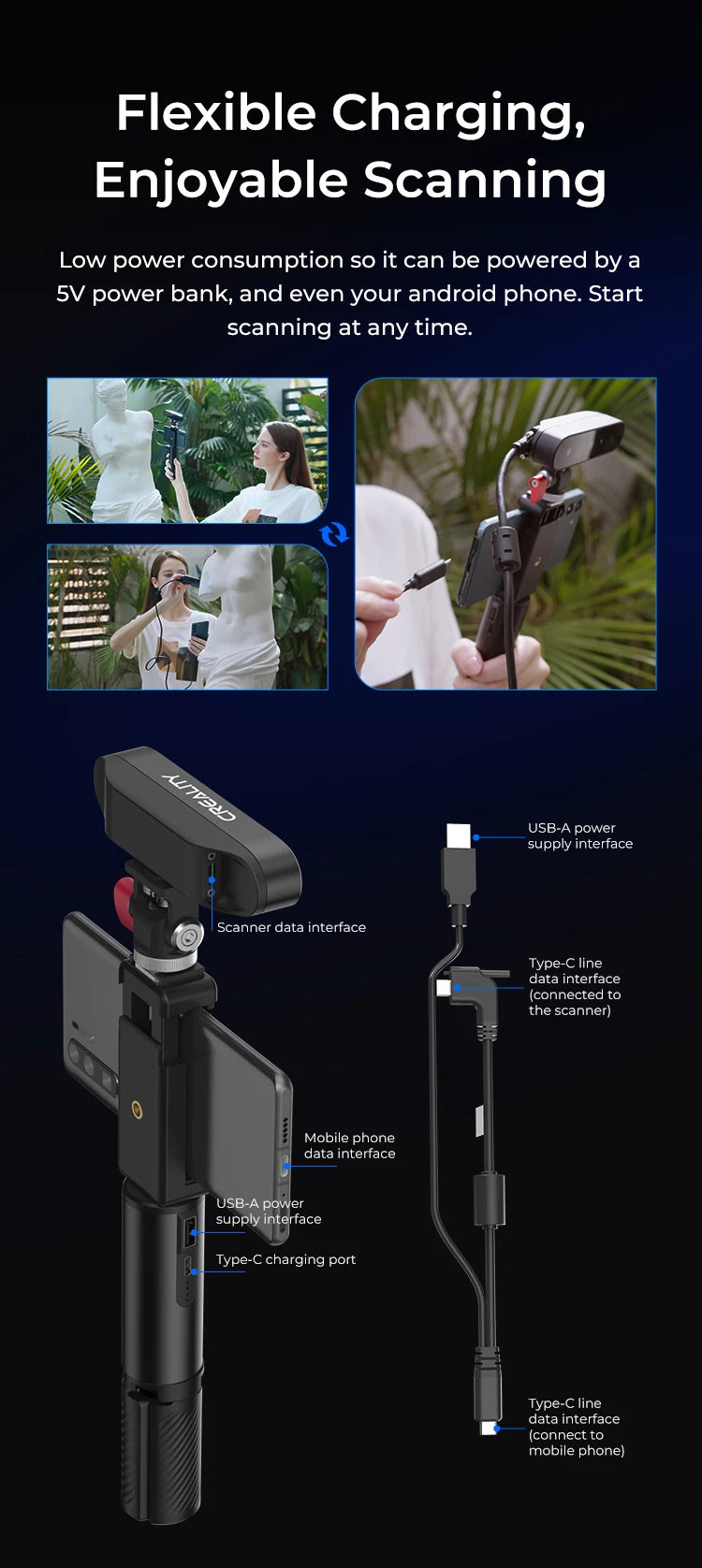

• 🔌 Low Power, High Efficiency: Runs on a 5V power supply — compatible with Android phones or a simple portable charger.

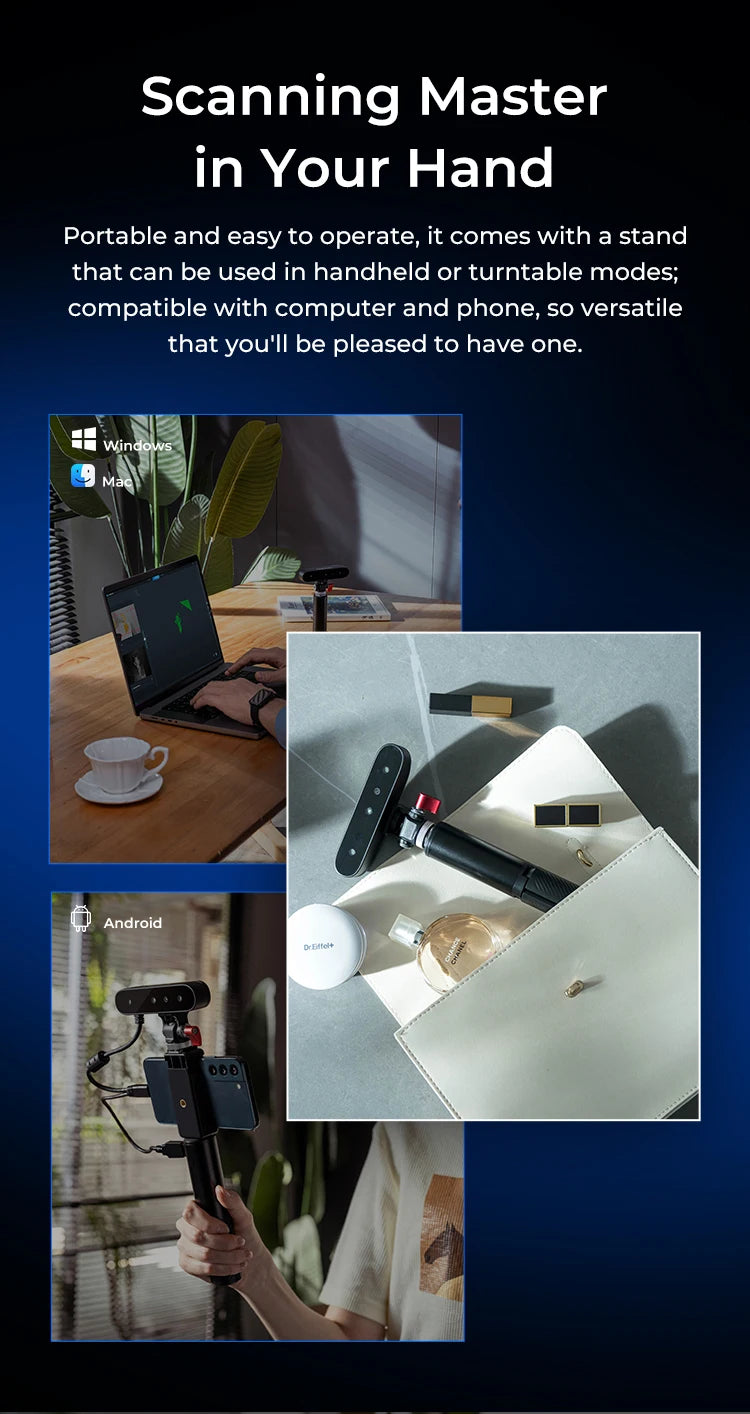

• 🖥️ Easy-to-Use Software: Comes with Creality Scan App for intuitive operation and file export in popular 3D formats.

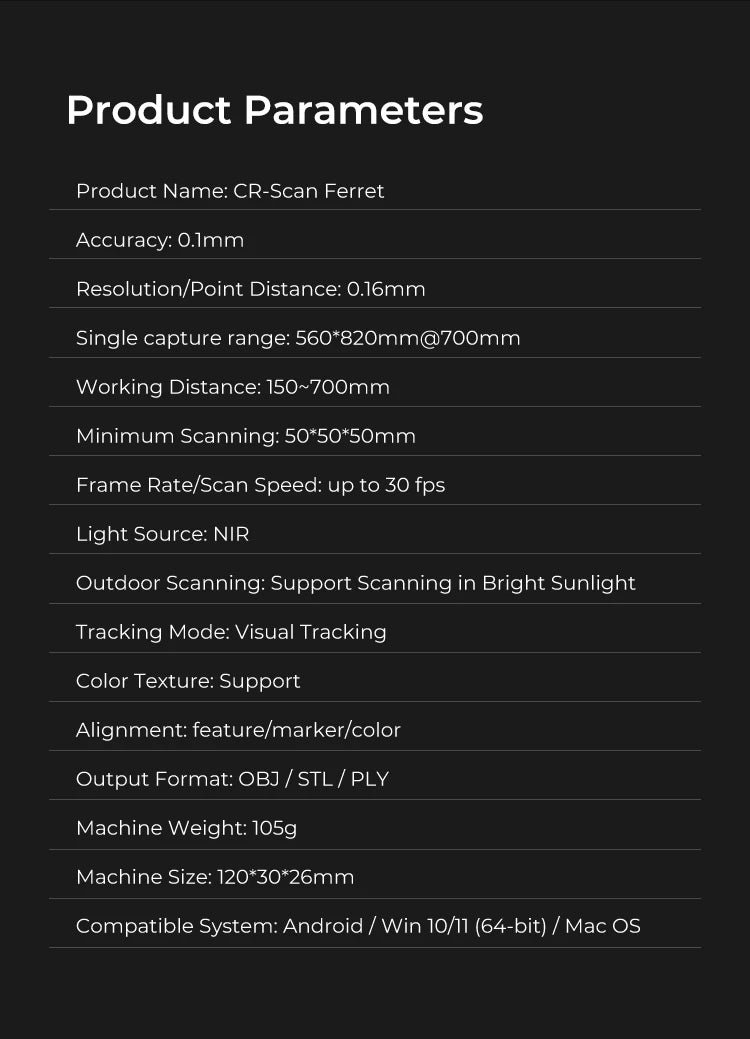

📦 Technical Specifications

• Product Name: CR-Scan Ferret

• Precision: Up to 0.1 mm

• Point Distance: 0.16 mm

• Single Capture Range: 560 × 820 mm @ 700 mm distance

• Working Distance: 150 – 700 mm

• Minimum Scan Volume: 50 × 50 × 50 mm

• Scanning Speed: Up to 30 FPS

• Light Source: NIR (Near Infrared)

• Outdoor Scanning: Supported (sunlight-friendly)

• Tracking Modes: Visual tracking

• Texture Color Capture: Yes

• Alignment Methods: Feature / Marker / Color

• Output File Formats: OBJ / STL / PLY

• Weight: 105 g

• Dimensions: 120 × 30 × 26 mm

• Operating Systems: Android, Windows 10/11 (64-bit), macOS

• Connectivity: USB 3.0 / 2.0

• Software: Creality Scan
